Steel Wire Reinforced Thermoplastic Pipe

HDPE Steel Wire Reinforced Composite Pipe – Typical Applications

Coal Mining (Underground):
Service water supply and drainage, compressed air systems, shotcreting / gunniting operations, and gas drainage (methane extraction).

Municipal Engineering:
Urban water supply, potable water distribution, building drainage, return water lines for district heating networks, as well as town gas and natural gas transmission.

Chemical Industry:
Process piping and discharge lines for the manufacturing of acids, alkalis, and salts; conveyance of corrosive gases and solid powdery materials.

Non-Ferrous Metallurgy:
Transport of corrosive media in non-ferrous metal smelting processes.

Textile & Dyeing Industry:
Discharge pipelines for corrosive effluents generated in textile printing and dyeing processes.

Oil & Gas Fields:
Transmission of oily produced water, oilfield wastewater, gas-field produced water, and oil-gas-water multiphase mixtures.

Marine / Offshore Engineering:
Seawater intake and delivery, submarine pipelines, and subsea cable / optical fiber conduit protection.

Steel wire mesh reinforced polyethylene gas extraction pipe for underground coal mines

Steel wire mesh reinforced polyethylene liquid pipe for underground coal mines

Steel wire mesh reinforced polyethylene gas pipes for underground coal mines

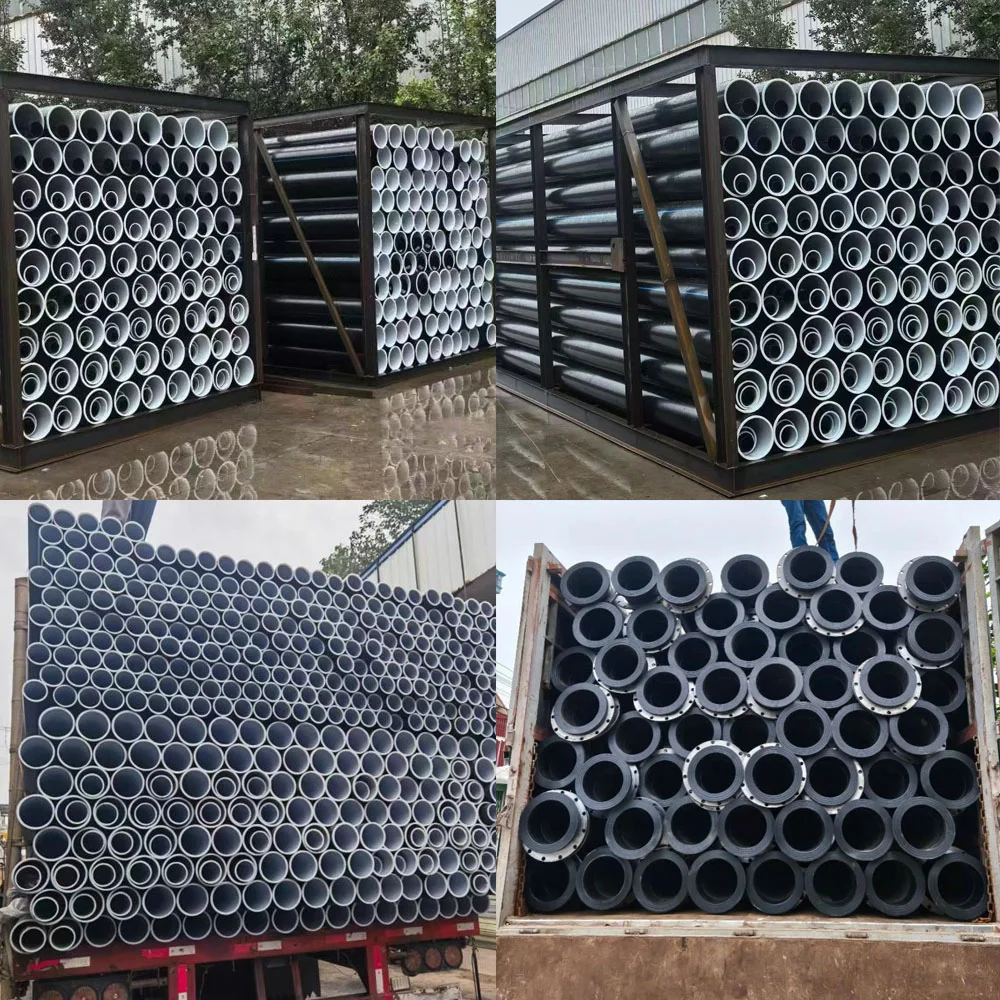

Package

FAQ

1. What is an HDPE Steel Wire Reinforced Composite Pipe?

HDPE Steel Wire Reinforced Composite Pipe is a high-performance pressure pipe made by combining high-density polyethylene (HDPE) with a reinforced steel wire mesh layer. The steel reinforcement provides higher pressure resistance and dimensional stability, while the HDPE layers provide excellent corrosion resistance, chemical resistance, and a smooth internal surface.

2. What are the main advantages of steel wire reinforced HDPE pipe?

The main advantages include high pressure resistance, excellent corrosion resistance, lightweight construction, smooth inner surface, and long service life. Compared with traditional metal pipes, the composite structure eliminates the risk of rust and significantly reduces maintenance requirements. The reinforced structure also allows the pipe to handle higher working pressures than conventional HDPE pipes of similar dimensions.

3. Is steel wire reinforced HDPE pipe suitable for high-pressure applications?

Yes. The reinforced steel wire layer significantly increases the pipe's pressure-bearing capability and dimensional stability. We manufacture pipes in different pressure ratings, diameters, and reinforcement configurations to meet specific project requirements. Before production, our technical team confirms the required working pressure, operating conditions, and applicable standards to select the appropriate pipe specification.

4. How are steel wire reinforced HDPE pipes connected?

The pipes are commonly connected using electrofusion fittings or other approved connection methods suitable for the specific pipe system. Proper fusion joining creates a strong and reliable connection while maintaining the corrosion-resistant characteristics of the HDPE material.

As a manufacturer, we can supply matching fittings and complete connection solutions, and provide technical guidance on fusion parameters, installation procedures, and site requirements.

5. Will the steel wire inside the pipe rust or corrode?

The steel reinforcement is embedded between protective polymer layers and is not directly exposed to the external environment or transported fluid when the pipe is properly manufactured and installed. The HDPE layers provide an effective barrier against moisture and corrosive media.

Our manufacturing process uses controlled reinforcement placement and polymer encapsulation to help protect the steel wire layer and ensure reliable long-term performance.

6. What happens if the pipe is damaged during transportation or installation?

Minor surface damage does not necessarily affect the reinforcement layer or the overall performance of the pipe. However, significant damage should be inspected before installation.

To reduce transportation-related damage, we use controlled production, protective packaging, suitable pipe stacking, and loading procedures. We can also provide installation guidelines to help contractors avoid excessive bending, impact, or improper handling at the job site.

7. How long can HDPE steel wire reinforced composite pipe last?

The expected service life depends on factors such as working pressure, temperature, transported medium, installation conditions, and operating environment. When correctly designed, manufactured, and installed within its specified operating conditions, the pipe can provide a long service life with relatively low maintenance requirements.

We select the appropriate raw materials, reinforcement structure, wall thickness, and pressure rating according to the customer's project requirements.

8. Can it be used for underground water pipelines?

Yes. HDPE steel wire reinforced composite pipe is widely suitable for underground water transportation and pressure pipeline systems. Its corrosion resistance eliminates the need for external anti-corrosion treatment normally required for many metal pipes.

For underground projects, we can provide recommendations for trench preparation, pipe bedding, backfilling, minimum bending radius, jointing, and pressure testing according to the project conditions.

9. Can the pipe be used for potable water?

It can be used for potable water applications when the specific pipe, raw materials, fittings, and production process comply with the applicable potable-water requirements and certifications for the target market.

For drinking-water projects, we can provide the relevant material and product certifications based on the destination country and project requirements. Customers should confirm the required certification before placing an order.

10. What is the difference between steel wire reinforced HDPE pipe and conventional HDPE pipe?

The main difference is the reinforcement structure. Conventional HDPE pressure pipe relies primarily on the strength and wall thickness of the HDPE material, while steel wire reinforced composite pipe incorporates a high-strength steel wire mesh layer within the polymer structure.

This reinforced structure can provide higher pressure capability, greater dimensional stability, and reduced deformation for demanding pressure applications, while retaining the corrosion resistance and lightweight characteristics of HDPE.

11. Is the pipe resistant to chemicals and corrosion?

Yes. The HDPE outer and inner layers provide excellent resistance to corrosion and many commonly encountered chemicals. This makes the pipe suitable for applications involving water, wastewater, industrial fluids, and other compatible media.

For aggressive chemicals or special operating conditions, our technical team can evaluate the chemical medium, concentration, temperature, pressure, and service conditions before recommending the appropriate pipe material and specification.

12. Can you manufacture customized sizes and pressure ratings?

Yes. As a professional manufacturer, we can provide different pipe diameters, pressure ratings, lengths, reinforcement structures, and connection configurations according to project requirements.

For customized projects, we normally confirm the required diameter, working pressure, medium, operating temperature, installation method, applicable standard, and required certifications before finalizing the product specification.

13. How do you ensure the quality of steel wire reinforced HDPE pipes?

Quality control starts with the selection of qualified raw materials and steel reinforcement. During production, we control key parameters including HDPE material quality, steel wire placement, reinforcement density, extrusion conditions, wall thickness, dimensional accuracy, and fusion compatibility.

Finished pipes can also be subjected to relevant performance tests, such as hydrostatic pressure testing, dimensional inspection, reinforcement inspection, and other applicable quality tests, depending on the product specification and project requirements.

14. What information do you need to recommend the right pipe?

To recommend the correct pipe, we usually need the following information:

• Pipe diameter

• Required working pressure

• Transported medium

• Operating temperature

• Above-ground or underground installation

• Required pipe length

• Applicable standard or certification

• Project quantity

Based on this information, our engineering team can recommend the appropriate pipe structure, pressure rating, wall thickness, reinforcement configuration, and fittings.
